Air source heat pump install



The team from Clarity heating spent the week installing our new air source heat pump, hot water tank and buffer tank. The voucher from the government green grant had finally come through. I think we applied on 17th December and received a decision on 5 January which seemed fairly fast to me although I had heard that other customers were waiting a lot longer for a decision. The total price for the installation was £10k, minus the £5k grant.

After some discussion over heating requirements for our floor area we agreed that we could rule out the upstairs area which we felt had adequate heating from the solar gain with the south facing window and the wood burning stove. Initially we were recommended a much large air source heat pump. We had to explain the insulation and air tightness measures we were taking in addition to an MVHR system.

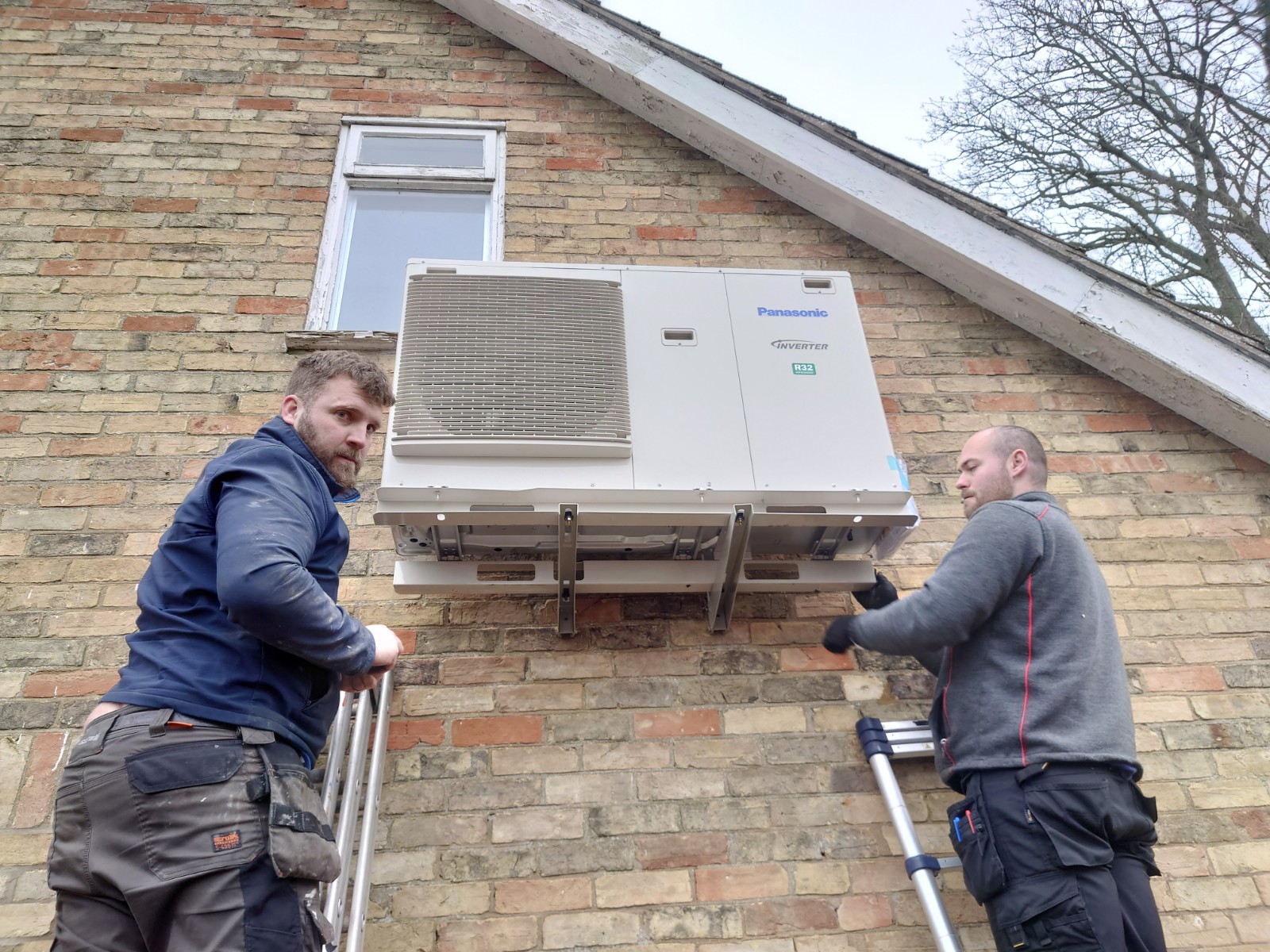

We were recommended a Panasonic Aquarea 5kW ASHP. We asked for it to be wall mounted so that we could still use our narrow driveway. There were no other suitable locations for it as the bedrooms are all downstairs and it is not recommended to have it on an external wall outside a bedroom.

The quote also included a Joule Cyclone 200 litre cylinder, buffer tank and expansion vessel, an underfloor heating manifold and additional components.

We are really pleased with it. It is very quiet and only noticeable that it is operating when you stand directly underneath it. The team are going to come back and add in the glycol to the primary circuit and connect up the heating manifold when we have installed the underfloor heating.
